be selected as Blackman-Harris, Hanning or
Hamming or defined in the standard.
The results of the harmonic currents are shown
both as a table and as a graph. The table shows
the numbers of harmonics (odd/even /all), the
standard stored limit values (h (Arms /%)), the
measured value of the corresponding harmon-
ics (Meas (Arms /%)) and the PASS/FAIL eval-
uation listed. In addition, the total harmonic
distortion (THD) is displayed (up to the 40th
harmonic). The graph (selection: bar graph)
shows the current measured value and the limit
of the corresponding type (A to D) is shown
in the spectrum. For a better and closer look
zoom in on the graphical view. After the mea-
surements, all data and results can be exported,
also an automatic test report can be generated.
The software package Ultra Power Analyzer
together with the Rigol oscilloscopes DS/
MSO2000/DS/MSO4000and DS6000 etc and
the corresponding probes provide a com-
plete solution for measuring switching power
supplies, and offer a first insight regarding
the performance in the standard limits of
IEC61000-3-2. The package is optimized for
preliminary tests of switching power supplies
during development. It is also aimed at manu-
facturers of electronic household, audio/video
and communication products. For example,
to measure the built-in switch mode power
supplies (in-house development or exter-
nally bought) and for the determination of
the parameters of the final product, such as
in-rush current or power consumption.
Nowadays, also end customers of consumer
electronics begin to question and critically
analyze these parameters during the purchas-
ing procedure. Therefore well prepared and
complete data sheets should be an ideal tool
for manufacturers to promote the product. As
with EMC pre-compliance testing during the
design phase, the costs for certification and
the time to market can be reduced with this
new test solution. Thus Rigol helps to improve
the product quality.
n

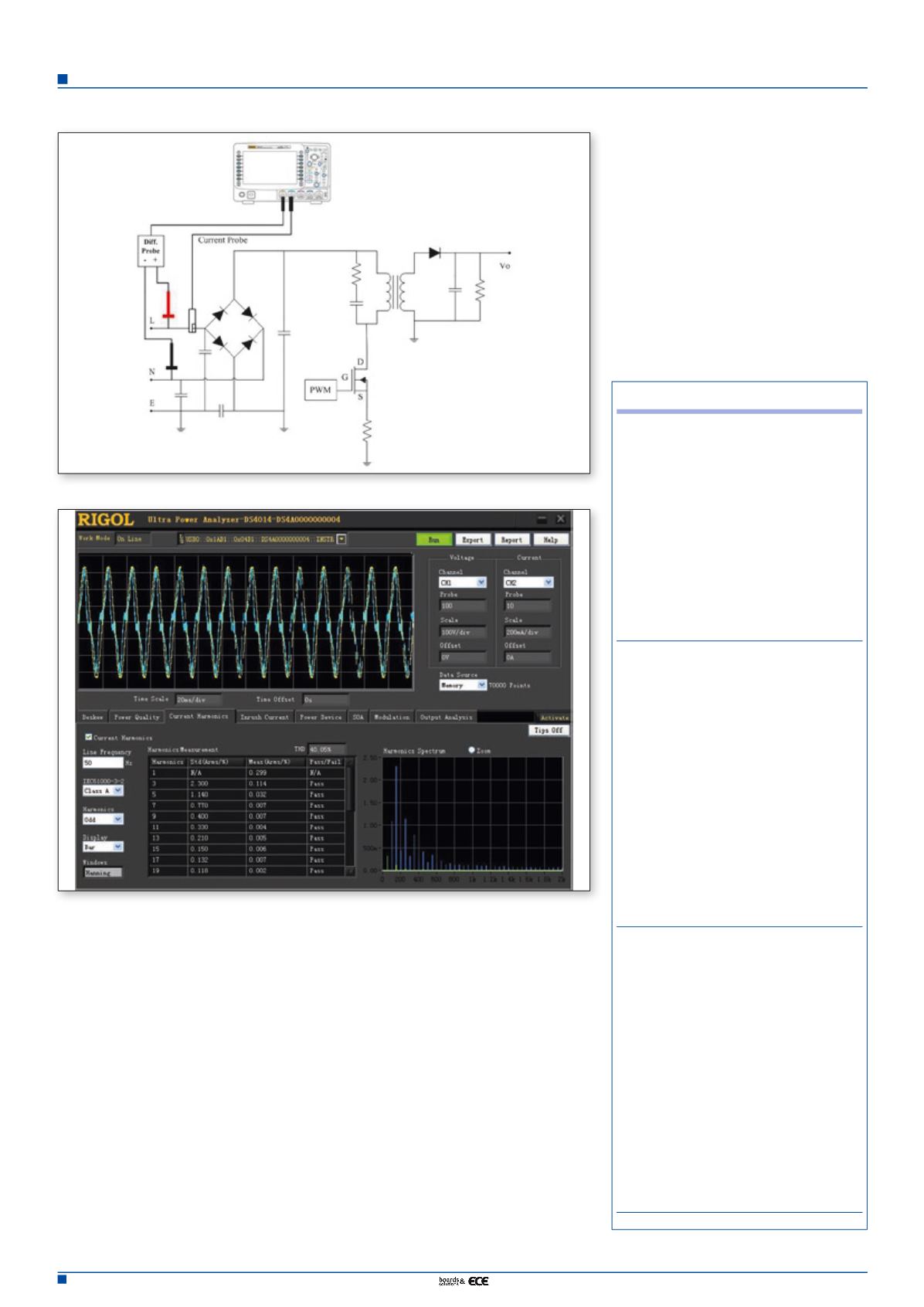

Figure 1. Configuration example for the measurement of input parameters
Figure 2. Ultra Power Analyser Screen on an oscilloscope shows the harmonic currents both as a
table and as a graph as well as additional parameters.
